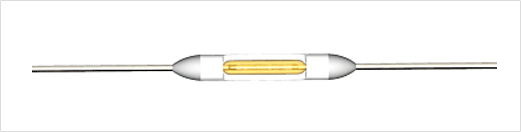

S.W.C Thermal Cutoff SW-2 Series Specification

온도 정격

오른쪽으로 스크롤 해보세요 >>

Cat NO.	Tf	Cutoff temperature	Th	Tm	K.I.S	UL	C-UL	TUV	PSE	CCC
SW-211T	102℃	98℃+2℃,-2℃	70℃	140℃	●	●	●	●	●	●
SW-210T	115℃	110℃+3℃,-2℃	85℃	130℃	●	●	●	●	●	●
SW-215T	130℃	125℃+2℃,-2℃	95℃	140℃	●	●	●	●	●	●
SW-216T	133℃	129℃+2℃,-2℃	100℃	140℃	●	●	●	●	●	●
SW-217T	139℃	135℃+3℃,-3℃	105℃	150℃	●	□	□	●	●	□
SW-220T	145℃	141℃+3℃,-3℃	115℃	150℃	□	□	□	□	●	●
SW-225T	150℃	145℃+0℃,-5℃	120℃	155℃	●	□	□	●	●	●

UL file NO : E126429 ● = Approved □ = Applied

전기 정격

- 정격전압 : 250V, ac

- 정격전류 : 2A

- 주파수 : 50 or 60Hz

- 최대허용차단전류 : 250V, ac 3A

- 순간과도전류 : dc current pulses, with an amplitude 30 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.

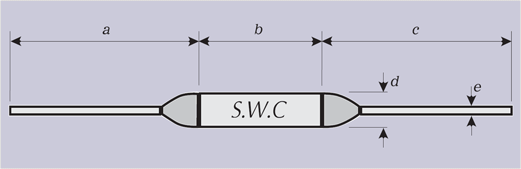

구조
