S.W.C Thermal Cutoff SW-1 Series Specification
온도 정격
오른쪽으로 스크롤 해보세요 >>
Cat NO. Tf Cutoff temperature Th Tm (VDE) K-mark UL C-UL VDE TUV CCC PSE
SW-102T  72℃  72℃+0℃,-4℃ 57℃ 200℃ ● ● ● ● ● ● ●
SW-105T  77℃  77℃+0℃,-4℃ 62℃ 200℃ ● ● ● ● ● ● ●
SW-109T*  84℃  84℃+0℃,-5℃ 69℃ 180℃ ● ● ● ● ● ● ●
SW-152T*  90℃  90℃+0℃,-4℃ 75℃ 180℃ ● ● ● □ □ ● ●
SW-106T*  91℃  91℃+0℃,-4℃ 76℃ 180℃ ● ● ● □ □ ● ●
SW-153T*  93℃  93℃+0℃,-5℃ 78℃ 180℃ ● ● ● ● □ ● ●
SW-104T  98℃  98℃+0℃,-4℃ 83℃ 190℃ ● ● ● ● ● ● ●
SW-108T* 100℃  100℃+0℃,-5℃ 85℃ 190℃ ● ● ● ● ● ● ●
SW-156T 104℃  104℃+0℃,-5℃ 79℃ 200℃ ●     ●   ● ●
SW-110T* 109℃ 109℃+0℃,-5℃ 94℃ 190℃ ● ● ● ● ● ● ●
SW-136T 110℃ 110℃+0℃,-5℃ 95℃ 119℃ ●         ● ●
SW-119T 115℃ 119℃+0℃,-5℃ 104℃ 190℃ ●
SW-111T* 121℃ 121℃+0℃,-5℃ 106℃ 200℃ ● ● ● ● ● ● ●
SW-115T 126℃ 126℃+0℃,-4℃ 111℃ 200℃ ● ● ● □ □ ● ●
SW-129T 128℃ 128℃+0℃,-5℃ 113℃ 200℃ ● ● ● ● ● ● ●
SW-114T* 139℃ 139℃+0℃,-4℃ 124℃ 200℃ ● ● ● ● ● ● ●
SW-130T 141℃ 141℃+0℃, -4℃ 126℃ 200℃ ● □ □ □ □ ● ●
SW-138T* 144℃ 144℃+0℃,-5℃ 127℃ 260℃ ● ● ● ● ● ● ●
SW-116T 152℃ 152℃+0℃,-4℃ 137℃ 270℃ ● ● ● ● ● ● ●
SW-120T 167℃ 167℃+0℃,-4℃ 152℃ 280℃ ● ● ● ● ● ● ●
SW-118T 169℃ 169℃+0℃,-5℃ 154℃ 280℃ ●         ● ●
SW-127T 184℃ 184℃+0℃,-6℃ 169℃ 280℃ ● ● ● ● ● ● ●
SW-122T 192℃ 192℃+3℃,-3℃ 177℃ 300℃ ● ● ● ●   ● ●
SW-125T 195℃ 195℃+0℃,-6℃ 180℃ 300℃ ● ● ● ● ● ● ●
SW-139T* 216℃ 216℃+0℃,-6℃ 200℃ 370℃ ● ● ● ● ● ● ●
SW-124T* 228℃ 228℃+0℃,-6℃ 200℃ 370℃ ● ● ● ● ● ● ●
SW-128T* 240℃ 240℃+0℃,-6℃ 200℃ 370℃ ● ● ● ● ● ● ●
SW-158T 117℃ 117℃+0℃,-6℃ 87℃ 170℃       ●     ●
UL file NO : E126429 ● = Approved □ = Applied
*Dual Rations(UL approved) - 250V 10A and 125V 15A
전기 정격
- 정격전압 : 250V, ac (and 125V)
- 정격전류 : 10A (and 15A)
- 주파수 : 50 or 60Hz
- 최대허용차단전류 : 250V, ac 15A
- 순간과도전류 : dc current pulses, with an amplitude 150 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.

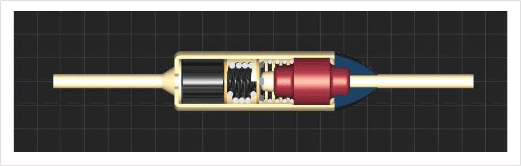

구조
외형
오른쪽으로 스크롤 해보세요 >>

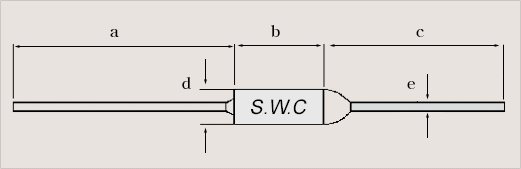

Dimension(mm) a b c d e
long 35.0 ± 1.0 10.5 ± 0.5 35.0 ± 1.0 4.0 ± 0.05 1.0
short 35.0 ± 1.0 10.5 ± 0.5 20.0 ± 1.0 4.0 ± 0.05 1.0
special 9.0 to 64.0 10.5 ±0.5 9.0 to 40.0 4.0 ± 0.05 1.0
인쇄
- 각 온도 퓨즈의 몸체에는 아래와 같이 인쇄 함
- 상표 : S.W.C.
- 제품번호 : SW - 1XXT
- 정격 : 전압(250 V), 전류(10 A), 용단온도(℃)
