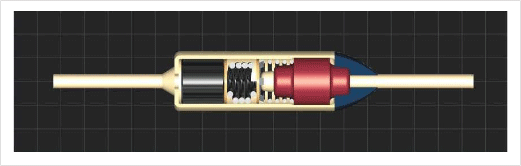

产品介绍:SW-1 Series

Cat NO.	Tf	Cutoff temperature	Th	Tm (VDE)	K-mark	UL	C-UL	VDE	TUV	CCC	PSE
SW-102T	72℃	72℃+0℃,-4℃	57℃	200℃	●	●	●	●	●	●	●
SW-105T	77℃	77℃+0℃,-4℃	62℃	200℃	●	●	●	●	●	●	●
SW-109T*	84℃	84℃+0℃,-5℃	69℃	180℃	●	●	●	●	●	●	●
SW-152T*	90℃	90℃+0℃,-4℃	75℃	180℃	●	●	●	□	□	●	●
SW-106T*	91℃	91℃+0℃,-4℃	76℃	180℃	●	●	●	□	□	●	●
SW-153T*	93℃	93℃+0℃,-5℃	78℃	180℃	●	●	●	●	□	●	●
SW-104T	98℃	98℃+0℃,-4℃	83℃	190℃	●	●	●	●	●	●	●
SW-108T*	100℃	100℃+0℃,-5℃	85℃	190℃	●	●	●	●	●	●	●
SW-156T	104℃	104℃+0℃,-5℃	79℃	200℃	●			●		●	●
SW-110T*	109℃	109℃+0℃,-5℃	94℃	190℃	●	●	●	●	●	●	●
SW-136T	110℃	110℃+0℃,-5℃	95℃	119℃	●					●	●
SW-119T	115℃	119℃+0℃,-5℃	104℃	190℃	●
SW-111T*	121℃	121℃+0℃,-5℃	106℃	200℃	●	●	●	●	●	●	●
SW-115T	126℃	126℃+0℃,-4℃	111℃	200℃	●	●	●	□	□	●	●
SW-129T	128℃	128℃+0℃,-5℃	113℃	200℃	●	●	●	●	●	●	●
SW-114T*	139℃	139℃+0℃,-4℃	124℃	200℃	●	●	●	●	●	●	●
SW-130T	141℃	141℃+0℃, -4℃	126℃	200℃	●	□	□	□	□	●	●
SW-138T*	144℃	144℃+0℃,-5℃	127℃	260℃	●	●	●	●	●	●	●
SW-116T	152℃	152℃+0℃,-4℃	137℃	270℃	●	●	●	●	●	●	●
SW-120T	167℃	167℃+0℃,-4℃	152℃	280℃	●	●	●	●	●	●	●
SW-118T	169℃	169℃+0℃,-5℃	154℃	280℃	●					●	●
SW-127T	184℃	184℃+0℃,-6℃	169℃	280℃	●	●	●	●	●	●	●
SW-122T	192℃	192℃+3℃,-3℃	177℃	300℃	●	●	●	●		●	●
SW-125T	195℃	195℃+0℃,-6℃	180℃	300℃	●	●	●	●	●	●	●
SW-139T*	216℃	216℃+0℃,-6℃	200℃	370℃	●	●	●	●	●	●	●
SW-124T*	228℃	228℃+0℃,-6℃	200℃	370℃	●	●	●	●	●	●	●
SW-128T*	240℃	240℃+0℃,-6℃	200℃	370℃	●	●	●	●	●	●	●
SW-158T	117℃	117℃+0℃,-6℃	87℃	170℃				●			●

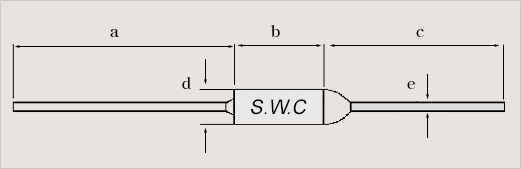

Dimension(mm)	a	b	c	d	e
long	35.0 ± 1.0	10.5 ± 0.5	35.0 ± 1.0	4.0 ± 0.05	1.0
short	35.0 ± 1.0	10.5 ± 0.5	20.0 ± 1.0	4.0 ± 0.05	1.0
special	9.0 to 64.0	10.5 ± 0.5	9.0 to 40.0	4.0 ± 0.05	1.0
