S.W.C Thermal Cutoff SW-5 Series Specification
Temperature rating
Scroll to the right >>
Model Tf Cutoff Temperature Th Tm K-mark UL VDE PSE CCC
SW-502T 72℃ 72℃ +0℃, -4℃ 52℃ 52℃ ● □ □   □
SW-505T 77℃ 77℃ +0℃, -4℃ 57℃ 160℃ ● □ □   □
SW-509T 84℃ 84℃ +0℃, -5℃ 64℃ 180℃ ● □ □   □
SW-552T 90℃ 90℃ +0℃, -4℃ 70℃ 180℃ ● □ □   □
SW-506T 91℃ 91℃ +0℃, -4℃ 91℃ 180℃ ● □ □   □
SW-553T 93℃ 93℃ +0℃, -5 73℃ 180℃ ● □ □   □
SW-504T 98℃ 98℃ +0℃, -4℃ 78℃ 190℃ ● □ □   □
SW-508T 100℃ 100℃ +0℃, -5℃ 75℃ 130℃ □ □ □   □
SW-510T 109℃ 109℃ +0℃, -5℃ 84℃ 130℃ □ □ □   □
SW-511T 121℃ 121℃ +0℃, -5℃ 94℃ 150℃ □ □ □   □
SW-529T 128℃ 128℃ +0℃, -5℃ 103℃ 150℃ □ □ □   □
SW-538T 144℃ 144℃ +0℃, -5℃ 119℃ 175℃ □ □ □ ● □
SW-516T 152℃ 152℃ +0℃, -4℃ 127℃ 175℃ □ □ □ ● □
SW-520T 167℃ 167℃ +0℃, -4℃ 144℃ 200℃ ● □ □   □
SW-518T 169℃ 169℃ +0℃, -5℃ 144℃ 200℃ ● □ □   □
SW-527T 184℃ 184℃ +0℃, -4℃ 159℃ 220℃ ● □ □   □
SW-522T 192℃ 192℃ +0℃, -4℃ 165℃ 250℃ ● □ □   ●
SW-525T 195℃ 195℃ +0℃, -4℃ 165℃ 250℃ ● □ □ ● □
SW-539T 216℃ 216℃ +0℃, -4℃ 176℃ 250℃ □ □ □ ● □
SW-524T 228℃ 228℃ +0℃, -4℃ 187℃ 300℃ □ □ □   □
□ = Applied
Electrical rating
- Rated voltage : 250V, ac
- Rated current : 5A
- Frequency : 50 or 60Hz
- Maximum allowable interrupting current : 250V, ac 7.5A
- Transient Overload Current : dc current pulses, with an amplitude 75 A and a duration of 3 ms with 10 s intervals, are applied for 100 successive cycles through the current path.

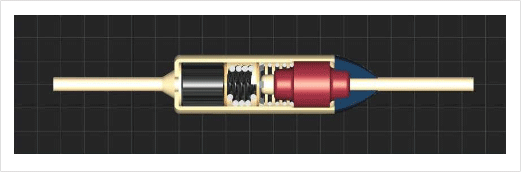

Configuration

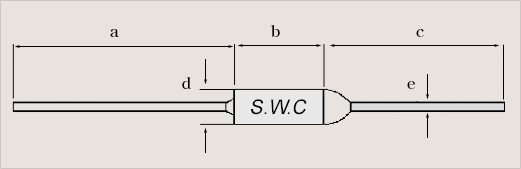

Appearance
Scroll to the right >>
Dimension(mm) a b c d e
Standard 35.0 ± 3.5 7.5 ± 0.3 40.0 ± 3.0 3.0 ± 0.1 0.6 ± 0.05
Marking
- On the body of each thermal fuse, marks should be printed as follows
- Brand : S.W.C.
- Part number : SW - 5XXT
- Rating : voltage(250 V), current(5 A), function temperature(℃)
