S.W.C Thermal Cutoff SW-6 Series Specification

Temperature rating

Cat NO. Tf Cutoff temperature Th Ampere Voltage UL
SW-601T 92℃ 89℃+2℃,-2℃ 60℃ 2A 50V □
SW-602T 98℃ 94℃+2℃,-2℃ 60℃ 2A 50V□

Application - Li-ion batteries used in laptops and mobile phones.
□ = Applied

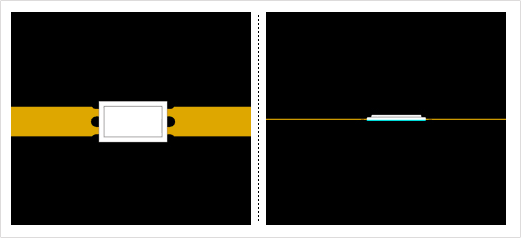

Configuration

Marking

  • On the body of each thermal fuse, marks should be printed as follows :
  • - Part number : SW - 6XXT
  • - Rating : function temperature(℃)
